Mô tả
e nâng điện thấp hay còn được gọi là dòng xe nâng điện mini hay xe nâng tay điện,
được nhiều đơn vị lớn lựa chọn sử dụng thay thế cho các dòng xe nâng tay thấp
trước đây mang lại hiểu quả kinh tế cao đồng thời rút ngắn thời gian làm việc.
 |
 |

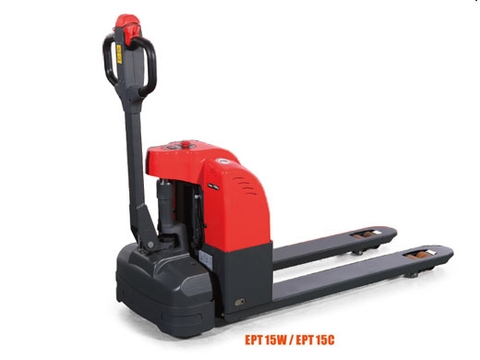

Hình ảnh xe nâng tay thấp chạy điện hiệu Noblift
| Type sheet for industrial truck acc. to VDI 2198 | 1KG=2.2LB 1INCH=25.4mm | |||||||
|---|---|---|---|---|---|---|---|---|
| Distinguishing mark | 1.2 | Manufacturer`s type designation | EPT 15 | SPT 15N | ||||
| 1.3 | Drive | Electric | Battery | |||||
| 1.4 | Operator type | Pedestrian | Pedestrian | |||||
| 1.5 | Load Capacity / rated load | Q (t) | 1.5 | 1.5 | ||||
| 1.6 | Load centre distance | c (mm) | 600 | 600 | ||||
| 1.8 | Load distance ,centre of drive axle to fork | x (mm) | 946 | 946 | ||||
| 1.9 | Wheelbase | y (mm) | 1293 | 1279 | ||||
| Weight | 2.1 | Service weight | kg | 190 | 200 | 165 | 175 | |
| 2.2 | Axle loading, laden front/rear | kg | 510/1180 | 560/1140 | 458/1207 | 480/1195 | ||
| 2.3 | Axle loading, unladen front/rear | kg | 150/40 | 160/40 | 130/35 | 140/35 | ||
| Tyres, chassis | 3.1 | Tires | Polyurethane (PU) | |||||
| 3.2 | Tire size,front | Ø x w (mm) | Ø 220×70(230×73)3) | Ø 220×70 | ||||
| 3.3 | Tire size,rear | Ø x w (mm) | Ø 80×70 | Ø 80×93 | Ø 80×70 | Ø 80×93 | ||
| 3.4 | Additional wheels(dimensions) | Ø x w (mm) | Ø 50(80)1) ×30 | Ø50×30 | ||||
| 3.5 | Wheels,number front/rear(x=driven wheels) | 1x +2/ 4 | 1x +2/ 2 | 1x +2/ 4 | 1x +2/ 2 | |||
| 3.6 | Tread, front | b10 (mm) | 340(410)1) | 340 | ||||
| 3.7 | Tread, rear | b11 (mm) | 380 | 380 | ||||
| Dimensions | 4.4 | Lift | h3 (mm) | 115 | 115 | |||
| 4.9 | Height of tiller in drive position min./ max. | h14 (mm) | 800 / 1170 | 850 / 1295 | ||||
| 4.15 |
Height, lowered |
h13 (mm) | 85(80) | 80 | 85(80) | 80 | ||
| 4.19 | Overall length | l1 (mm) | 1648(1660) 1) | 1718(1730)1) | 1666 | 1736 | ||
| 4.20 | Length to face of forks | l2 (mm) | 498(510)1) | 516 | ||||
| 4.21 | Overall width | b1 (mm) | 560(574)1) | 705 | 560 | 705 | ||
| 4.22 | Fork dimensions | s/e/l (mm) | 48/160/11502) | 48/160/12202) | 48/160/11502) | 48/160 /12202) |
||
| 4.25 | Distance between fork- arms | b5 (mm) | 540(520) | 685(520,540) | 540(520) | 685(520,540) | ||
| 4.32 | Ground clearance, centre of wheelbase | m2 (mm) | 37(32) | 32 | 37(32) | 32 | ||
| 4.34 | Aisle width for pallets 800X1200 lengthways | Ast (mm) | 1950 | 1961 | ||||
| 4.35 | Turning radius | Wa (mm) | 1445(1460)1) | 1507 | ||||
| Performance data | 5.1 | Travel speed, laden/ unladen | km/h | 4.2 / 4.6 | 4.2 / 4.6 | |||
| 5.2 | Lift speed, laden/ unladen | m/s | 0.03 / 0.053 | - | ||||
| 5.3 | Lowering speed, laden/ unladen | m/s | 0.049 / 0.036 | - | ||||
| 5.8 | Max. gradeability, laden/ unladen | % | 4 / 10 | 4 / 10 | ||||
| 5.10 | Service brake | Electromagnetic | ||||||
| Electric- engine | 6.1 |
Drive motor rating S2 60min |
kW | 0.45 | 0.45 | |||
| 6.2 | Lift motor rating at S3 10% | kW | 0.8 | - | ||||
| 6.3 | Battery acc. to DIN 43531/ 35/ 36 A, B, C, no | No | no | |||||
| 6.4 | Battery voltage, nominal capacity K5 | V/ Ah | 2x12V / 64 | 2x12 / 40 | ||||
| 6.5 | Battery weight | kg | 48 | 30 | ||||
| 6.6 | Energy consumption acc. to VDI cycle | kWh/h | 0,39 | - | ||||
| Addition data | 8.1 | Type of drive control | DC-Speed Control | |||||
| 8.4 | Sound level at driver`s ear acc. to EN 12053 | dB(A) | 69 | 69 | ||||
